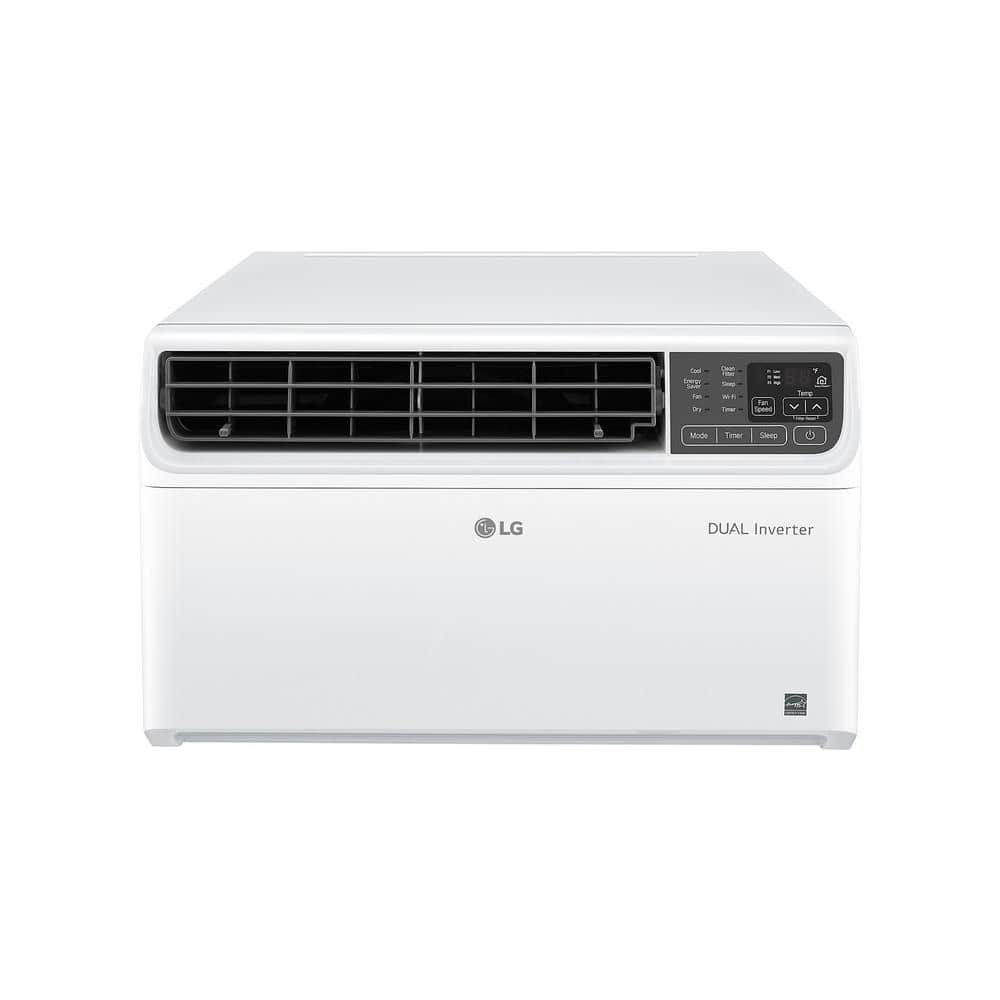

10,000 BTU 115-Volt Window Air Conditioner Unit Cools 450 sq. ft. with Dual inveter, Wi-Fi Enabled and Remote in White

• 10,000 BTU dual inverter smart (Wi-Fi) window air conditioner
• Estimated cooling area: 450 sq. ft. / room size: 18 ft. x 25 ft.
• Smartphone control with LG ThinQ technology
• Voice control works with Alexa or Hey Google
• Quiet operation down to 44dBA
• Up to 35% energy savings
• Dual inverter technology - variable speed compressor
• 3-in-1 operation: cool/fan/dry
• User friendly digital control panel and LCD remote control
• Fits window openings: 22 in. - 36 in. W x 13 in. H
• 4-cooling and fan speeds with auto cool
• 4-way air deflection
• 24-hour on/off timer
• Filter check reminder light

1 Year Parts & Labor Limited In- Home Service Warranty

Can I use a 110 converter transformer to 220 to run my 220 air conditioner?

The terms 220V, 230V, and 240V are used interchangeably to describe the same nominal single-phase electrical supply. Electrical grids fluctuate, and modern appliances are built to safely tolerate the slight overlap between these ranges. 220 V is an older standard, still referenced in parts of Europe, Asia, and older homes in North America. As indicated in its title, the LG 23,500 BTU 230/208-Volt Window Air Conditioner Unit Cools 1450 sq. Ft. w/ Dual Inverter, Wi-Fi Enabled and Remote in White, Model # LW2422IVSM, must be plugged into a standard 240V, 3-wire, grounding receptacle, rated 15 A / 240 V / 60 Hz, protected by a 15 Amp time-delay fuse or a 15 Amp circuit breaker. You will need to check the specifications for the step-up transformer you intend to use. A step-up transformer will successfully increase voltage from 120V to 240V. However, doubling the voltage cuts the available amperage in half, and you must ensure your power source (outlet and circuit breaker) can handle the total wattage required by the window air conditioner...^Ivan.

Would I be able to change the outlet to 110 vote

The LG 23,500 BTU 230/208-Volt Window Air Conditioner Unit Cools 1450 sq. Ft. w/ Dual Inverter, Wi-Fi Enabled with Remote in White, Model # LW2422IVSM requires a standard 240V, 3-wire, grounding receptacle rated 15 A/ 240V / 60 Hz (NEMA Configuration 6-15R) or a 15-amp, 250-volt outlet (NEMA 6-15R). Manuals call for "240 V" and "250 V" interchangeably because it is essentially the same nominal voltage in North America. Electrical grids supply a nominal 240 V, but outlets are typically stamped 250 V as the maximum rating. "3-wire grounding" refers to a standard circuit with two hot wires and one ground. This air conditioner will not work at 120V. Again, for everyday purposes in North America, 110 V and 120 V are the same. Standard wall outlets and household appliances labeled 110 V, 115 V, or 120 V are completely interchangeable and are designed to safely operate on the exact same electrical grid. The official standard for modern homes in the U.S. and Canada is 120 V, though people still use "110 V" out of historical habit. Because electrical grids experience natural fluctuations and demands, the actual voltage measured at a wall outlet typically fluctuates between 114 V and 126 V, and appliances are purposely engineered to work safely within this broader range...^Ivan.

110 or 220

As indicated in its title, the LG 23,500 BTU 230/208-Volt Window Air Conditioner Unit Cools 1450 sq. Ft. w/ Dual Inverter, Wi-Fi Enabled and Remote in White, Model # LW2422IVSM is a 230/208-Volt Window Air Conditioner. In North America, 220V and 230V are just older or nominal terms for a 240V single-phase system, whereas 208V is a distinct three-phase commercial power system. 220V / 230V (Single-Phase), historically called 220V, is the standard residential power. It uses two hot legs that measure 110V or 115V to the ground, but combine to create 220V to 240V at the outlet. 208V (Three-Phase), is predominantly used in commercial or industrial buildings. It is derived directly from a three-phase "Wye" transformer. Each hot leg measures 120V to the ground, but because of the phase angle, measuring between any two hot legs yields 208V...^Ivan.

how well will this cool a 22x24 garage

The LG 23,500 BTU 230/208-Volt Window Air Conditioner Unit Cools 1450sq. Ft. w/ Dual Inverter, Wi-Fi Enabled with Remote in White, Model # LW2422IVSM will cool an estimated area of 1450 sq. Ft as indicated in its title. That is a room size: 29 ft. x 50 ft. A room of 22 ft. x 24 ft. is square footage of 528 sq. Ft, so using this air conditioner in that small an area means the air conditioner is oversized for the area. When an air conditioner is too large for a room, it cools the air too quickly and shuts off before it can remove moisture. This rapid on-and-off cycle is called short cycling. It leads to a cold, clammy room, higher energy bills, and a shorter lifespan for the unit. An AC removes moisture from the air only while the compressor is running. Because an oversized unit satisfies the thermostat and shuts off too fast, moisture remains in the room, making it feel sticky and muggy. The most energy-intensive part of running an AC is the initial start-up. Constantly turning on and off places heavy strain on the compressor and electrical components, leading to frequent breakdowns and a shortened system lifespan. Rooms will often feel chilly and overly cold near the AC unit, while corners further away remain warm, leading to uncomfortable temperature fluctuations. Because the system draws a large power surge every time it kicks on—and does this frequently—it wastes electricity without actually making the space comfortable...^Ivan.

How do you attach the window unit to a window that has no outside support to hold the unit in place.

The LG 14,000 BTU 115Volts Window Air Conditioner Unit Cools 700 sq. Ft. Dual Inverter, Remote, Wi-Fi and Dehumidifier in White, Model # LW1522IVSM requires a standard single-hung or double-hung window for proper installation. A sliding lower sash that can be lowered so it rests firmly behind the top mounting flange of the air conditioner to hold it securely in place is necessary. We do not have instructions for other methods of installation...^Ivan.

This air conditioner work with regular 110 voltage? Because I have a new unit but I m worried about it

AS indicated in its title, the LG 23,500 BTU 230/208-Volt Window Air Conditioner Unit Cools 1450 sq. Ft. w/ Dual Inverter, Wi-Fi Enabled with Remote in White, Model # LW2422IVSM is a 230/208-Volt Window Air Conditioner. It will not work with "regular 110 voltage - actual voltage is 120V). It must be plugged into a standard 240 V, 3-wire grounding receptacle rated 15 A / 240 VAC / 60 Hz. The type of plug it plugs into is shown in the bottom right corner of the air conditioner's main image...^Ivan.

I just got one of these 2nd hand and got it installed. It seems to be working well but is not pulling anywhere near 11 amps. Looks more like 2-3 amps, I saw 5 amps for a little bit. Is there something wrong or is that normal?

Hi there, we understand you’re checking why your second‑hand LW1022FVSM isn’t pulling the full 11 amps, and it’s great that you’re keeping an eye on how the unit is performing after installation. With LG’s Dual Inverter technology, seeing 2–5 amps during normal operation is expected. The compressor automatically adjusts its speed based on room temperature, so it only reaches the full 11‑amp rating when it needs maximum cooling. Helpful step to verify performance ⦁ Set the AC to Cool Mode, lowest temperature, and highest fan speed to see if the compressor briefly increases its amp draw. Manual link for guidance ⦁ LW1022FVSM Owner’s Manual https://www.lg.com/us/support/product/lg-LW1022FVSM.AT1AUSH?tab=1 If you need further assistance, feel free to email lgdigitalcare@lg.sprinklrsupport.com. ‑Rich

can this unit stay installed in the window during winter in north east pennsylvania? 12,000 BTU 115-Volt Window Air Conditioner Unit Cools 550 sq. ft. with Dual Inverter, Wi-Fi Enabled and Remote Model # LW1222IVSM

Regardless of which State you're in, technically, the LG 12,000 BTU 115-Volt Window Air Conditioner Unit Cools 550 sq. Ft. with Dual Inverter, Wi-Fi Enabled, and Remote in White, Model # LW1222IVSM can stay installed in your window during winter, but it is highly not recommended. Leaving it in exposes the unit to freezing temperatures, moisture, and debris, which can cause internal rust and severely shorten its lifespan. Melting snow and ice can seep into the unit's electronics and compressor, leading to internal corrosion and electrical failure. Small animals, mice, and insects often seek shelter from harsh weather and may squeeze through the gaps or vents of an installed unit. Even with insulation, the gaps around the side panels are rarely completely airtight, allowing freezing air to leak directly into your home, which could drive up your heating bills. If you absolutely cannot remove the unit, you must winterize it properly to protect your home and the machine. Ensure it is completely disconnected from power to avoid accidental turn-ons during unseasonably warm days. Use foam insulation strips or weatherstripping around the edges of the window and extension panels. For extra protection, apply a plastic shrink-film over the entire indoor window. Place a breathable, fitted winter cover on the exterior part of the unit to block snow, ice, and debris. Avoid using solid plastic tarps, as they trap condensation inside the unit and promote mold growth...^Ivan.
